LAM-VF 24.30

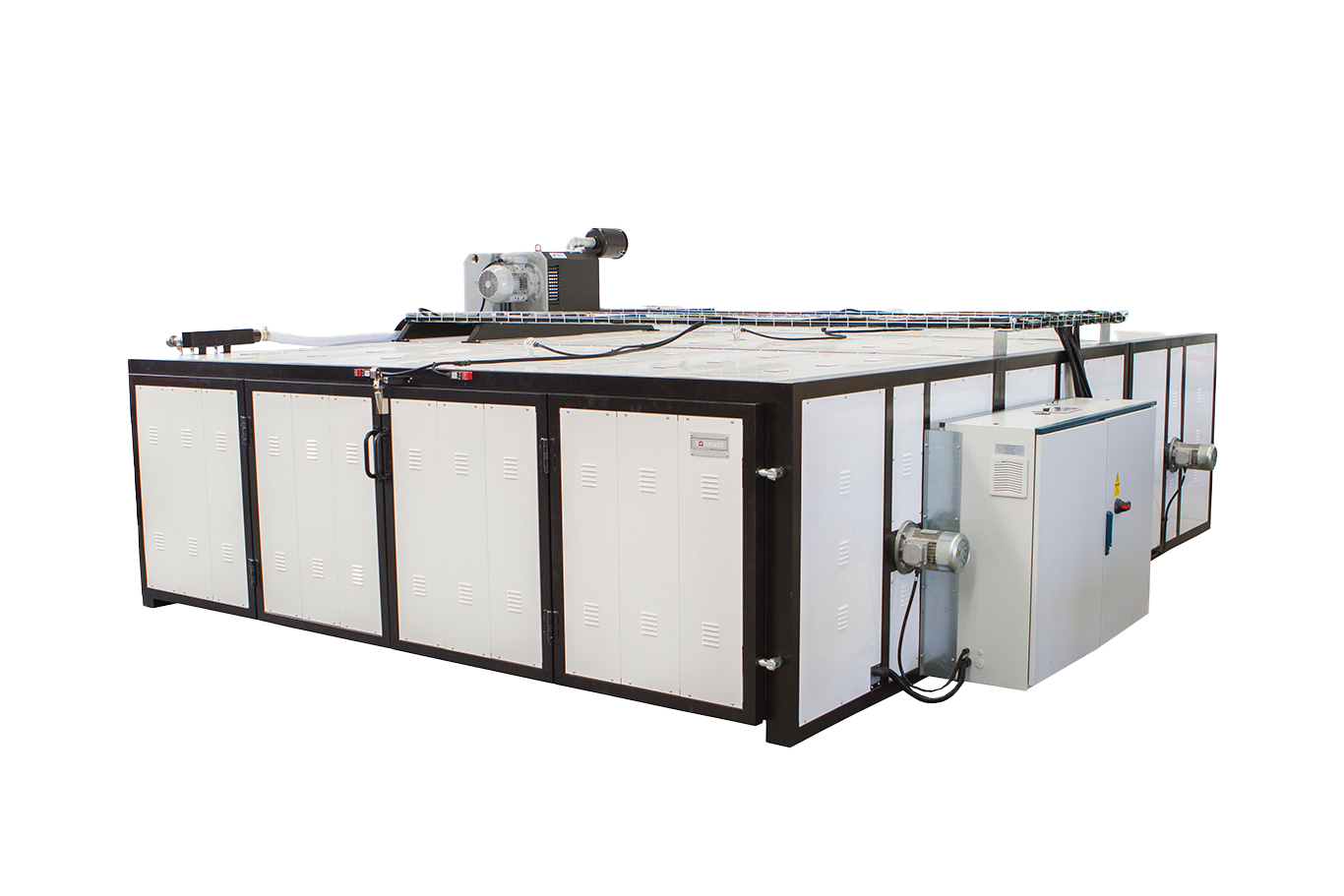

ELECTRIC FURNACE WITH HEAT STIRRER FOR VACUUM LAMINATING OF FLAT AND CURVED GLASS Ask For Information

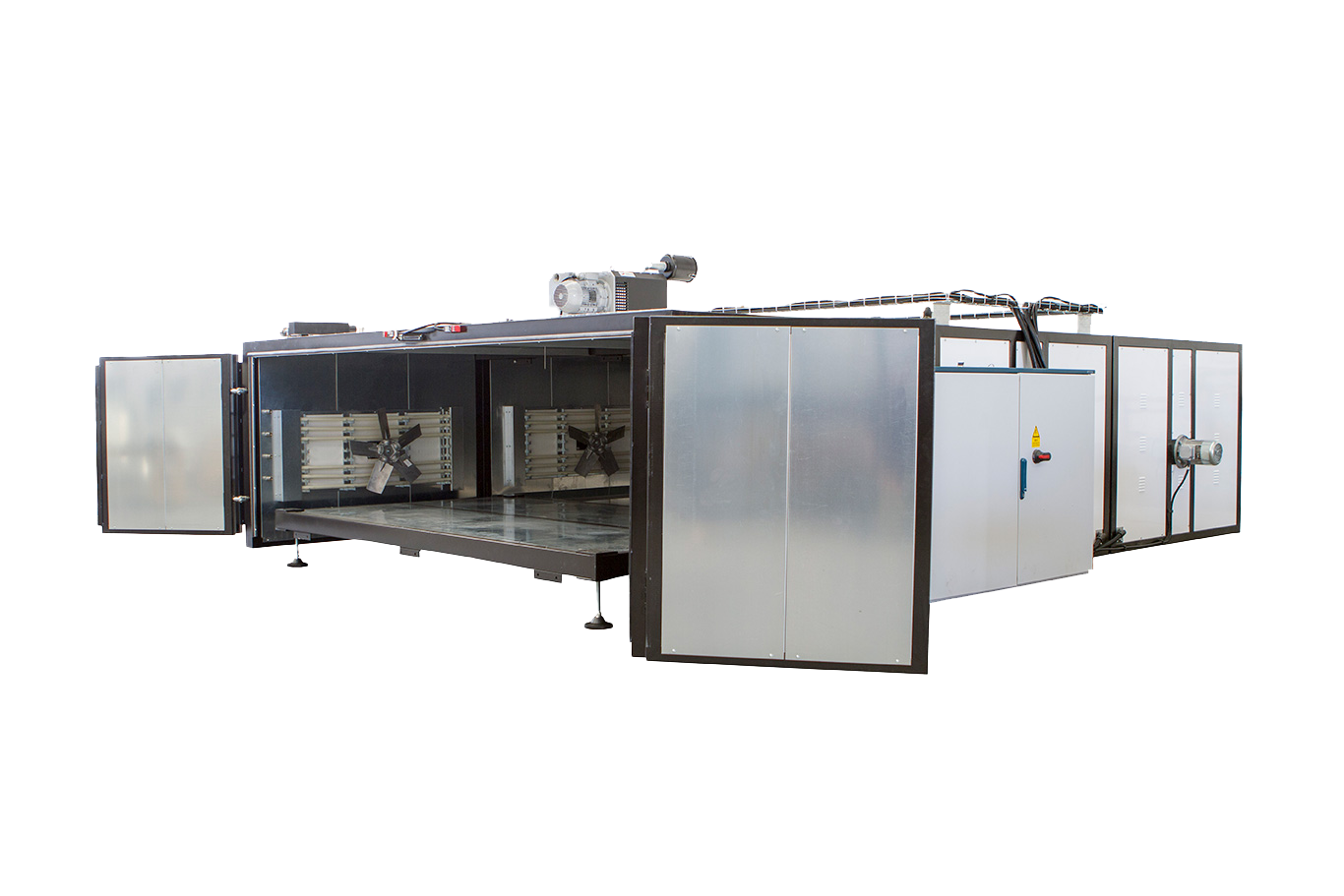

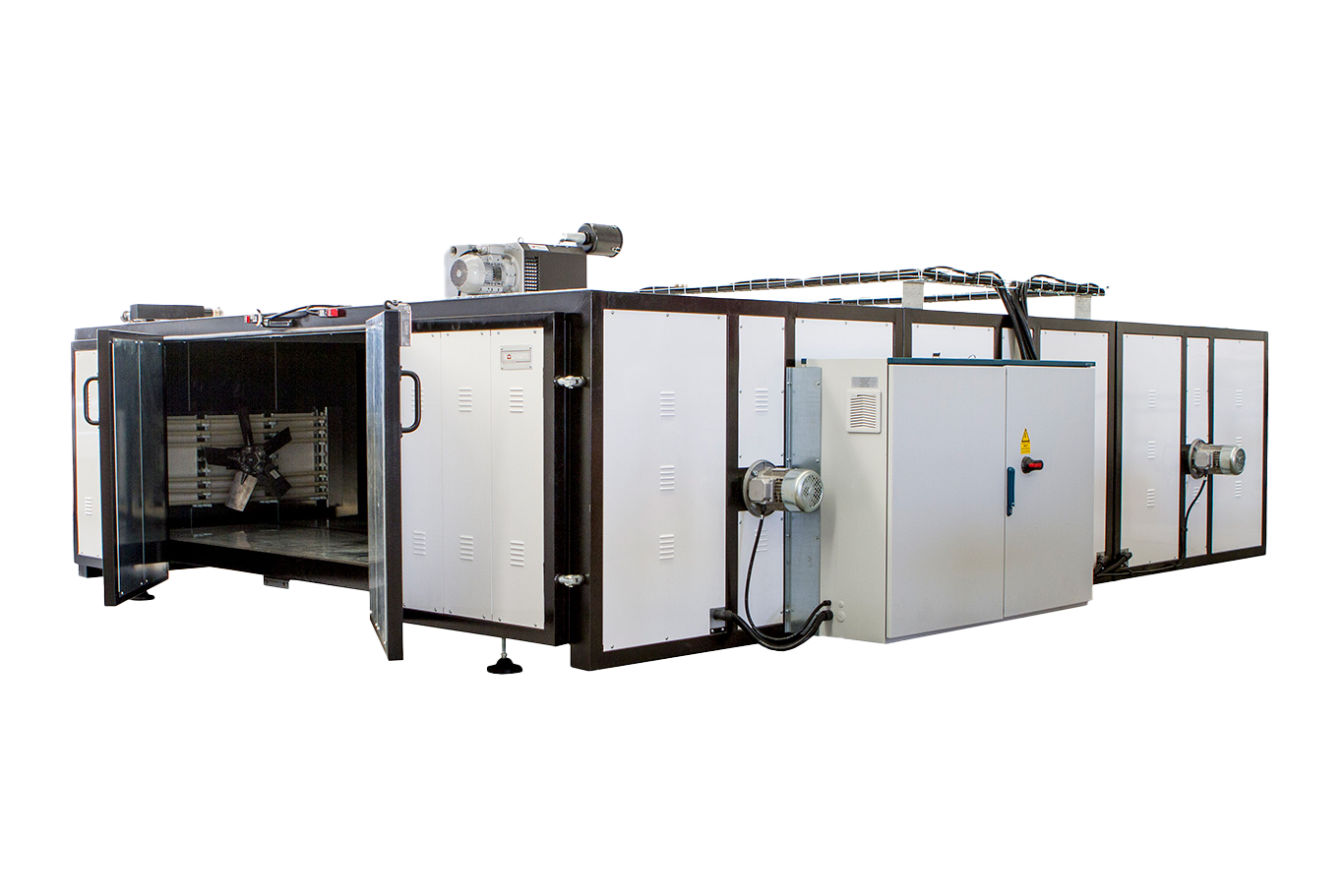

Oven with tubular structure, internal infill paneling in galvanized sheet metal, external paneling in pickled and painted sheet metal, equipped with internal insulation in rigid panels of high density rock wool, with low accumulation and thermal conductivity.
Furnace composed of 1 chamber equipped with an electric heating system using heat stirrers.
Oven equipped with
- n.01 Sliding chamber on rails
- n.01 front retractable door and predisposition for the second rear retractable door
- n.01 Fixed base
- n.04 working table complete with silicone bag, nets, vacuum valves, pipes and quick couplings with viton gasket

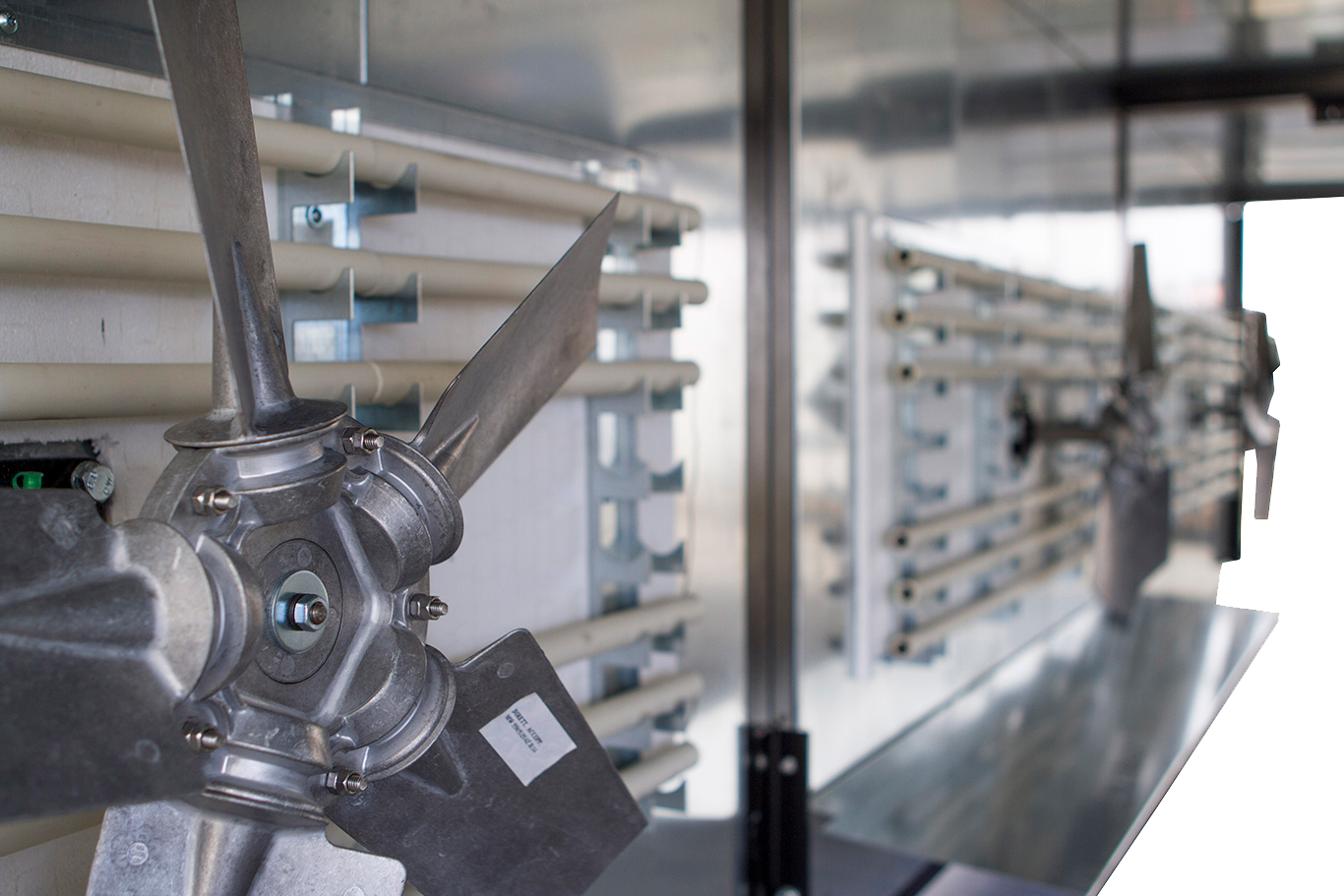

- resistors positioned laterally

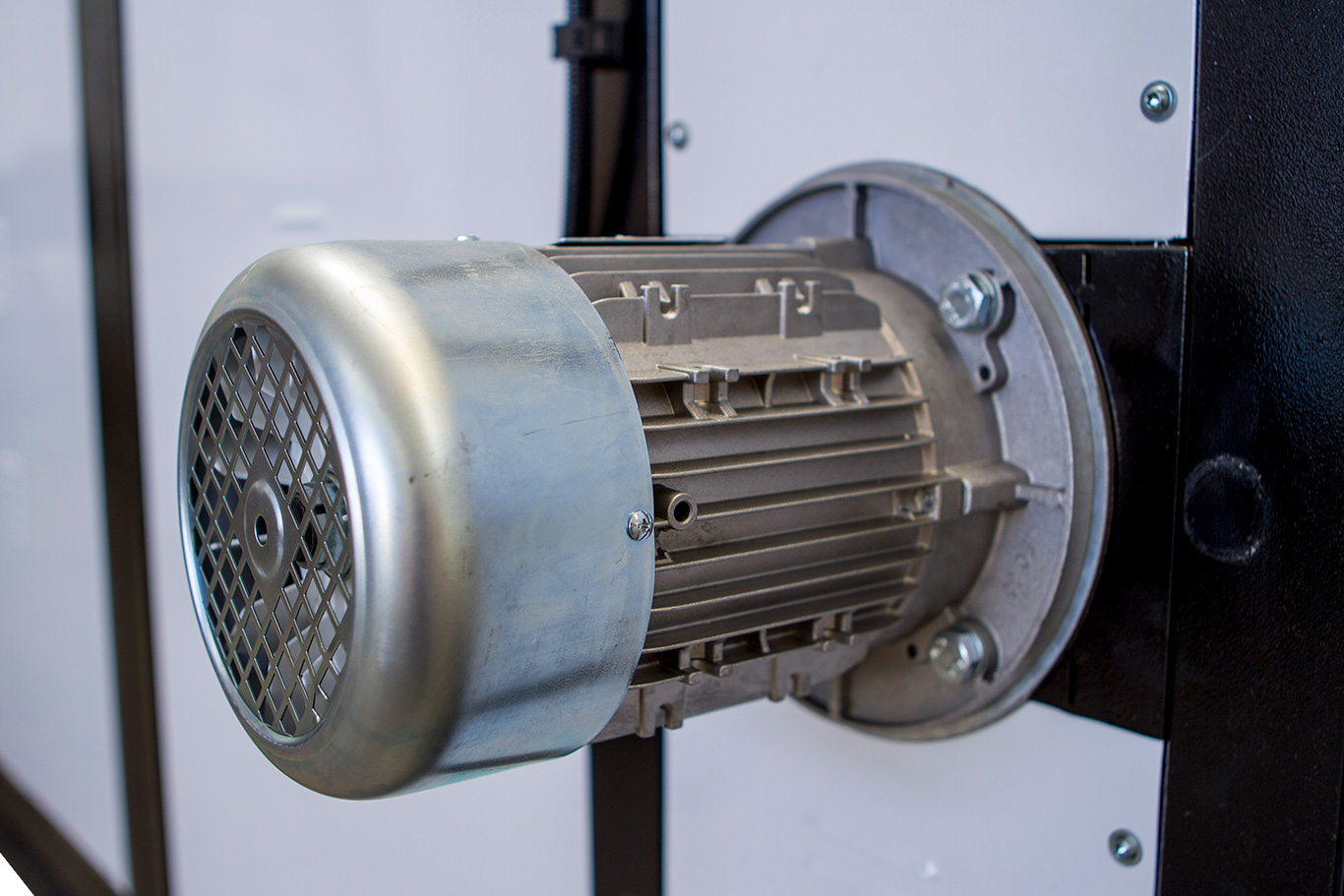

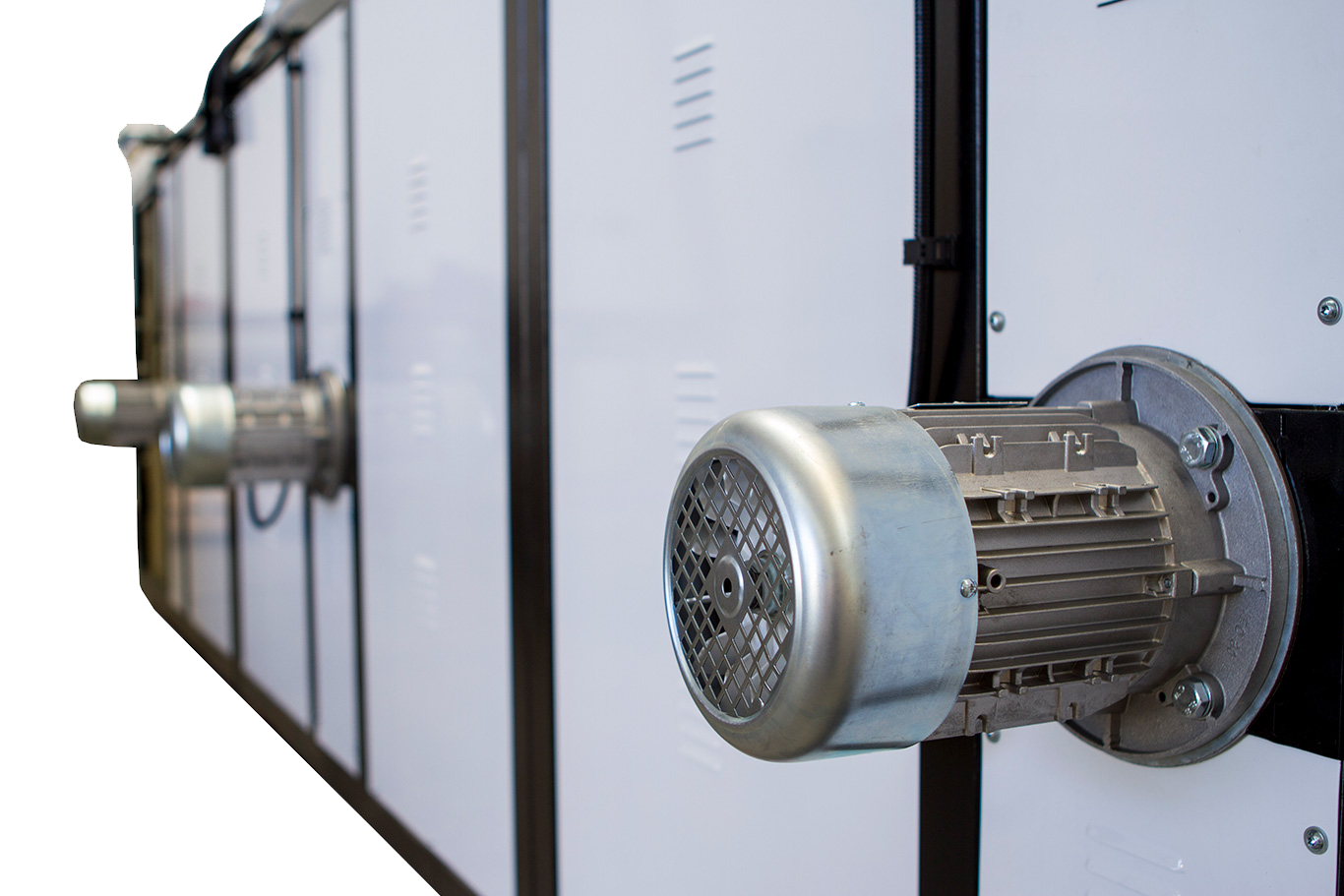

- n.04 fans for heat movement

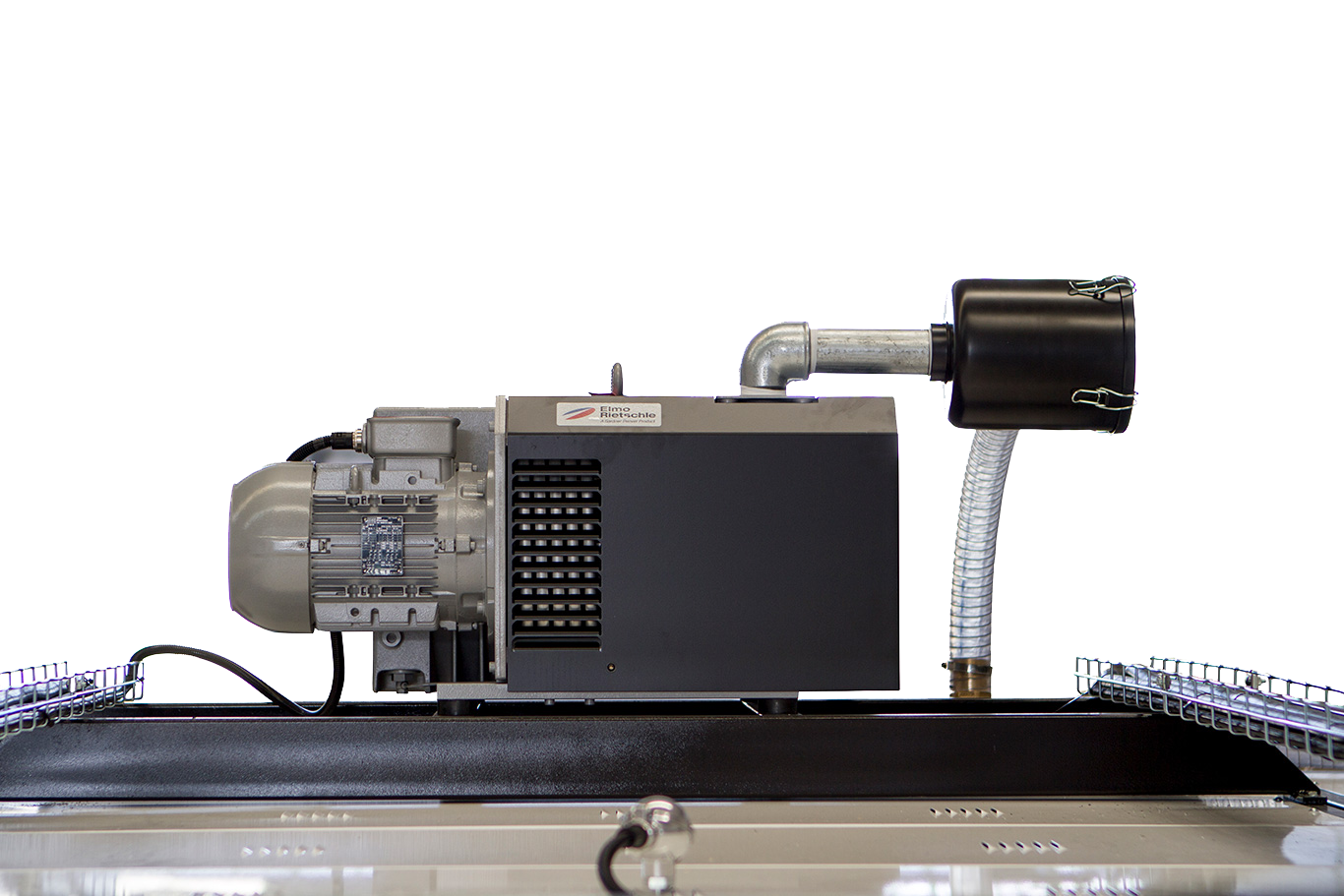

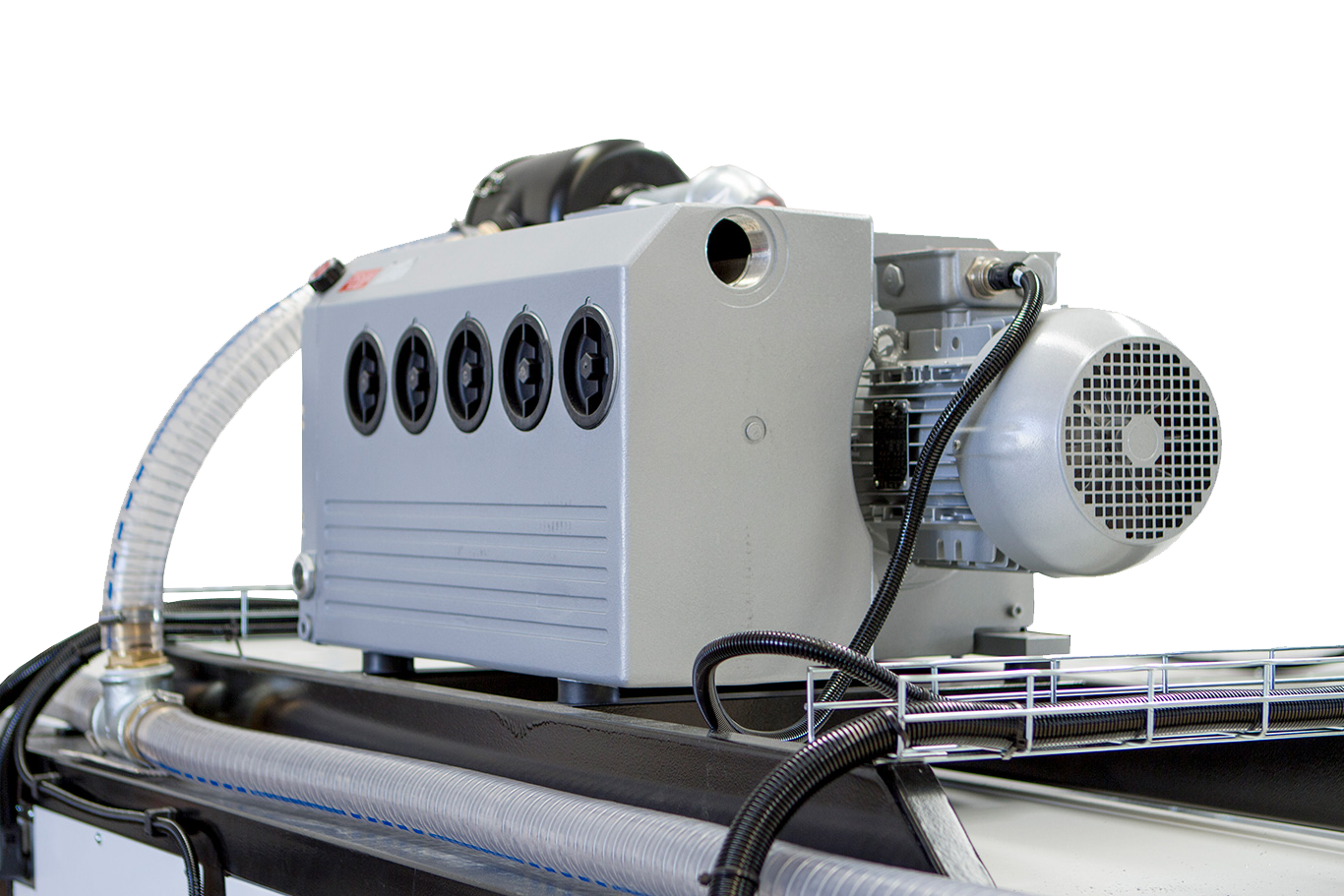

- vacuum system complete with 1 pump and accessories

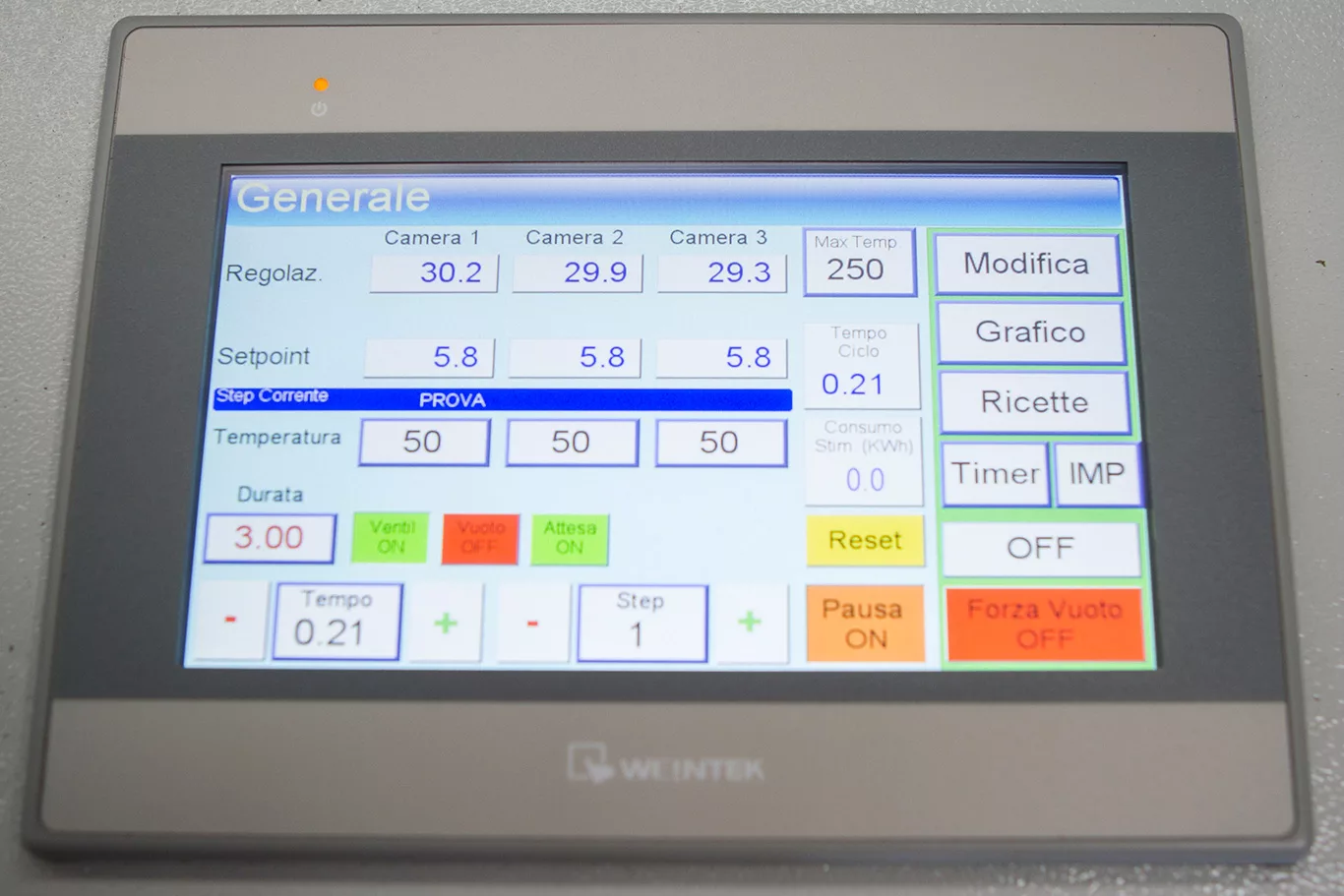

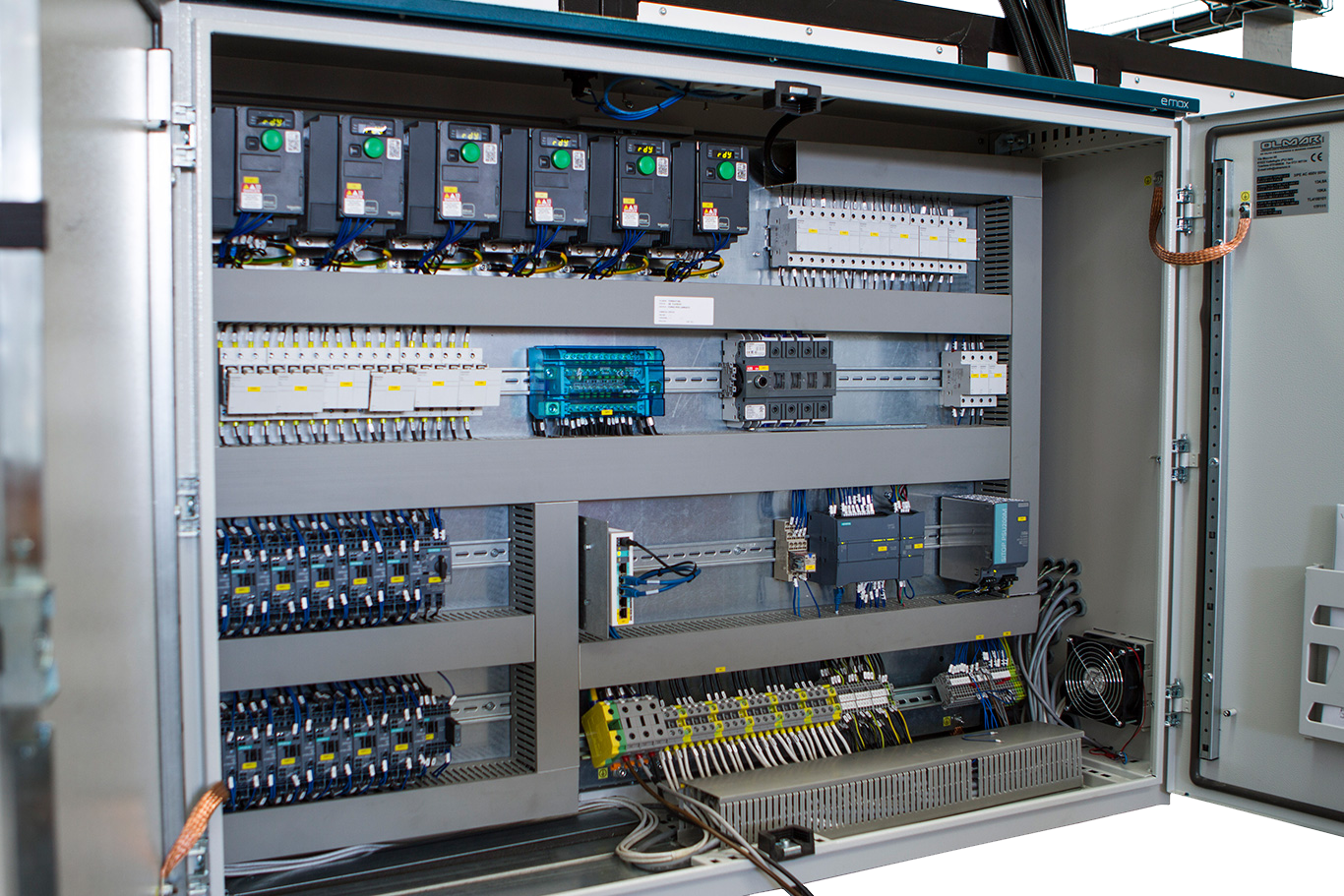

- n.01 Panel complete with SIEMENS programmer with router for remote assistance
- n.01 Cross for shelves lifting
- n.01 Trolley for n.02 Film rolls
Structured oven to work with .01 base and max 4 shelves.
Possibility of adding a second rear door, fixed bases and additional shelves to speed up the glass preparation phase
Technical details:
- – no. 04 silicone bags (mm) 2600 x 3350
- – no. 08 nets (mm) 2400 x 3000
- – no. 08 vacuum valves for silicone bag complete with hose
- – 210 m3 pump: 4.00 kW
- – Resistance power: Kw 46.5
- – n.04 fans: Kw 0.25 each.
- – Operating temperature: 0-200°
The width of the workable sheet depends on the thickness of the glass; if the thickness of the glass increases, the width of the workable sheet decreases.
We reserve the right to make improvements to the products without notice.
